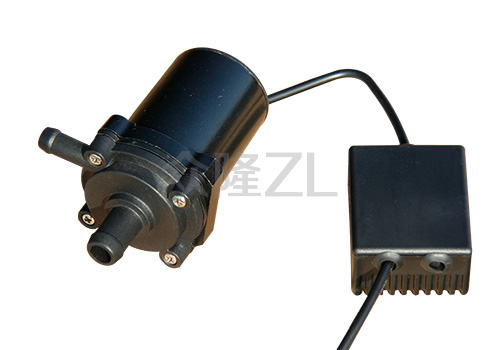

| Model | ZL50-20 | |||||||||
| Working Voltage Range | DC：6-24V | |||||||||
| Rating Power | 6V：10-18W / 12V：10-40W / 24V：30-95W | |||||||||
| Static Water Head | 2-10M | |||||||||
| Static flow rate | 10-35Litre / minute | |||||||||
| Lifespan | Continuous operation under normal working condition ≤ 24 hours, service life＞10000hour | |||||||||
| Working Environment | PH value：PH5-10（Weak acid and weak base）、Amphibious pump | |||||||||
| Max Noise | Continuous operation under normal working condition (water pump is 1m away from the tester)＜50dB | |||||||||
| Max Working Temperature | At room temperature, the temperature of the aqueous medium≤100℃ | |||||||||
| Application | High-rise water supply 、Garden watering, irrigation, etc | |||||||||
| Size | IP Grade | Inlet | Outlet | Remarks | ||||||
| Length (mm) | Width (mm) | Height (mm) | OD (inch) | ID (mm) | OD (mm) | ID(inch) | Inlet and outlet standard thread | |||
| 63 | 63 | 146 | IP68 | G1″ Standard threaded pipe | φ25 | φ25 | G1″ Standard threaded pipe | |||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
